Technical Specs

(More Info)

Available in reveal and narrow reveal edges, this collection of Lay-In Grille panels offers a variety of horizontal and vertical blade orientations to add dimensionality to the ceiling. Create continuous linear visuals or distinctive cross-hatch patterns in wall-to-wall or ceiling cloud installations.

Nominal Panel Sizes

  • 24” x 24”
  • 24” x 48”

Key Features

  • Complement design elements, installation requirements, and acoustical performance with a variety of standard and custom configurations
  • Fully accessible installation

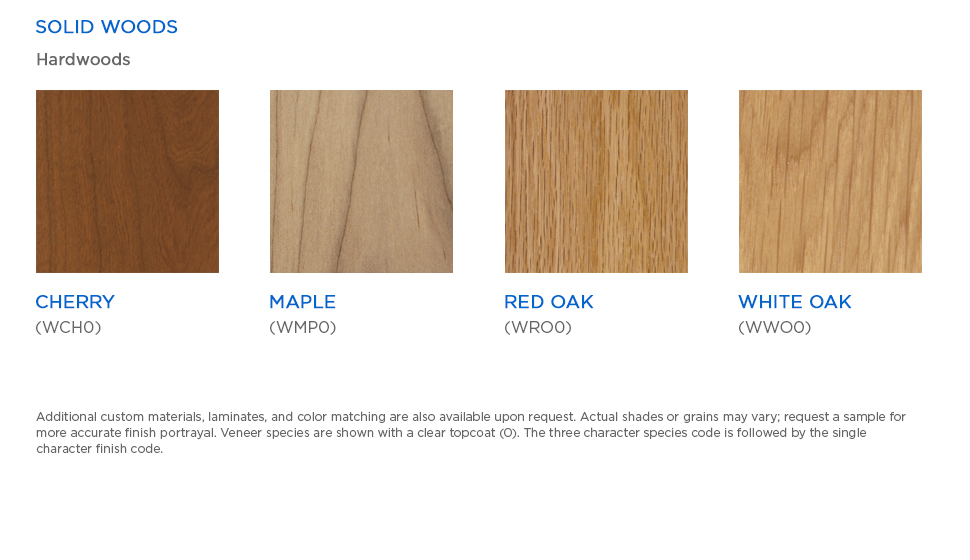

  • Enjoy a wide array of veneer species, cuts, and matches
  • Additional custom materials, laminates, staining, sheening, and color matching available upon request
  • Realize up to 0.85 Noise Reduction Coefficient
  • Manufactured with sustainable wood materials
  • Composed of low-VOC emitting materials and components

Physical Data

Material

  • Fire-retardant composite wood or solid wood blades
  • Hardwood plywood, solid wood, or extruded aluminum backers
  • Solid wood or aluminum dowels

​Weight

  • 2.0 – 4.0 lbs./sq. ft. (typical system weight)
  • Varies by configuration and material

Fire Class

Veneers

  • ASTM E84 (Class A) and CAN/ULC-S102
    • Flame spread: 25 or less
    • Smoke developed: 450 or less

Solid Wood

  • ASTM E84 (Class C) and CAN/ULC-S102
    • Flame spread: 200 or less
    • Smoke developed: 450 or less

Class A fire-retardant coatings and treatments are available for solid wood components.



Nominal Panel Sizes

  • 24” x 24”
  • 24” x 48”

Key Features

  • Complement design elements, installation requirements, and acoustical performance with a variety of standard and custom configurations
  • Fully accessible installation
  • Enjoy a wide array of veneer species, cuts, and matches
  • Additional custom materials, laminates, staining, sheening, and color matching available upon request
  • Realize up to 0.85 Noise Reduction Coefficient
  • Manufactured with sustainable wood materials
  • Composed of low-VOC emitting materials and components

Physical Data

Material

  • Fire-retardant composite wood or solid wood blades
  • Hardwood plywood, solid wood, or extruded aluminum backers
  • Solid wood or aluminum dowels

​Weight

  • 2.0 – 4.0 lbs./sq. ft. (typical system weight)
  • Varies by configuration and material

Fire Class

Veneers

  • ASTM E84 (Class A) and CAN/ULC-S102
    • Flame spread: 25 or less
    • Smoke developed: 450 or less

Solid Wood

  • ASTM E84 (Class C) and CAN/ULC-S102
    • Flame spread: 200 or less
    • Smoke developed: 450 or less

Class A fire-retardant coatings and treatments are available for solid wood components.



REVIT, CAD & PDF

LAY-IN GRILLES - HORIZONTAL BLADES

Name PDF DWG
Horizontal Blades (9210H1) PDF DWG

LAY-IN GRILLES - VERTICAL BLADES

Name PDF DWG
Vertical Blades (9210V1) PDF DWG
Vertical Blades (9215V1) PDF DWG

Document Library

Document Library

Name Download
Data Page – Lay-In Grilles PDF
Data Page – Lay-In Grilles - French - Canada PDF
Wood Ceilings & Walls Brochure PDF
Natural Wood Veneer - Sell Sheet PDF
Warranty PDF
Special Order - Veneers & Finishes PDF
3-Part Spec - Wood Lay-in Grille DOCX
3-Part Spec - Wood Lay-in Grille - French DOCX
VOC Certificate of Compliance (Solid Wood) PDF
VOC Certificate of Compliance (Veneer) PDF
Cross Reference Guide PDF
Data Page – Lay-In Grilles - Canada PDF
Understanding Veneers and Solid Woods Brochure PDF
