FIND SYMMETRY IN THE ATYPICAL.

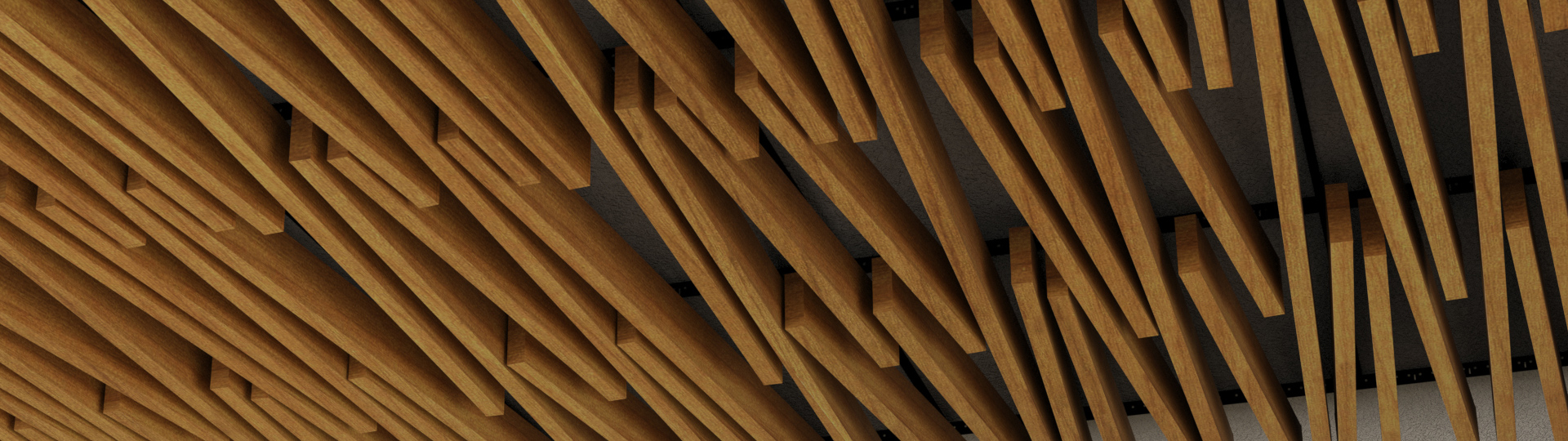

Non-parallel, diverging beams and baffles create organic textures in an unlimited variety of configurations for interior applications. Tavola™ Divergent creates contemporary movement without traditional lines.

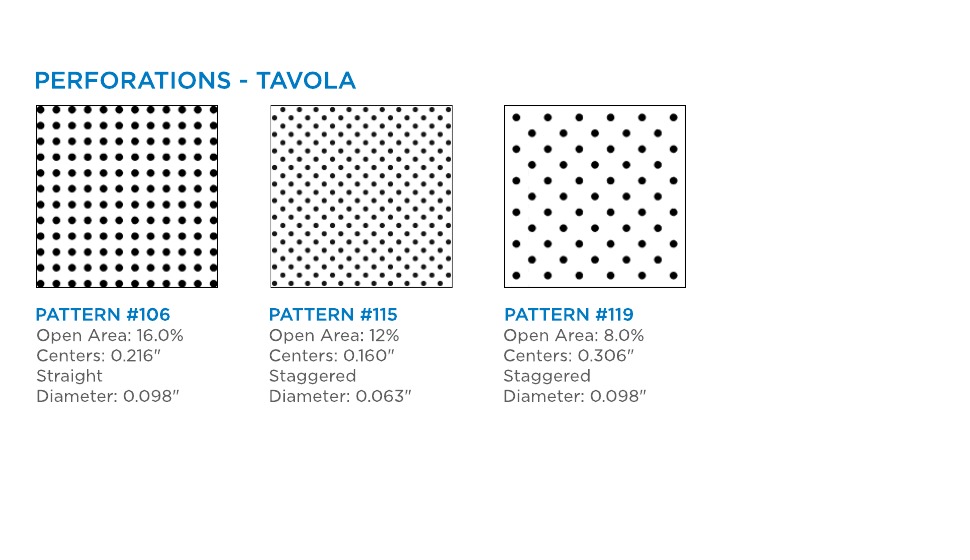

The ceiling system offers six perforation patterns for elevated acoustical performance.

Product Details

Dimensions:

Use twist clips to create motion

Multitude of profile dimensions up to 12' long

Key Features

  • Two perforation patterns for elevated acoustics
  • Standard heavy-duty 15/16" T-grid suspension
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 0.5 - 2.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Up to 85%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

Dimensions:

Use twist clips to create motion

Multitude of profile dimensions up to 12' long

Key Features

  • Two perforation patterns for elevated acoustics
  • Standard heavy-duty 15/16" T-grid suspension
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 0.5 - 2.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Up to 85%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81
View Configurations

CAD & PDF

Click on the + sign to view and download details and drawings for the product(s) listed below.

Tavola Divergent

Name ID PDF DWG
Tavola Divergent Beam Consolidated TAVODIV-A1.0-A1.4 PDF DWG

ACOUSTICS

ACOUSTICS

Name Download
Acoustical Baffle Test Results PDF

DOCUMENT LIBRARY

Document Library

Name Download
Tavola Divergent - Technical Specifications DOCX
Tavola Divergent - Data sheet PDF
Tavola - Divergent - Submittal Sheet PDF
Terms & Conditions PDF
Limited Warranty PDF
Delivery, Storage and Handling N/A
Tavola Divergent - Data sheet - Canada PDF
Tavola - Divergent - Submittal Sheet - Canada PDF
Tavola Divergent - Data sheet - Canada (French) PDF
Tavola - Divergent - Submittal Sheet - Canada (French) PDF

Product Declarations

Name Download
EPD - Aluminum PDF
EPD - Steel PDF
HPD - Beams and Baffles PDF
GREENGUARD Gold Certificate PDF

Sustainability Information

Overview
CertainTeed designs, engineers and manufactures ceiling systems that optimize interior environmental quality, material resources and energy usage by incorporating sustainable materials and employing sustainable practices in our manufacturing processes.  Solutions from CertainTeed may contribute to LEED BD+C and ID+C certification for schools, retail, hospitality, healthcare and commercial interiors.

Ecomedes
Our Ecomedes Sustainable Product Platform allows you to quickly access the product information and certifications you need, calculate contributions to LEED and other green building rating systems and create and save a group of products using the project feature. The information is free to access and always up to date. You can sign up for an account using your name and an email and start specifying!

Visit ECOMEDES
Ecomedes allows the AEC Community, Designers and Owners to find, compare and optimize the selection of sustainable building products for any project based on environmental characteristics such as certifications, ecolabels, and contributions to green building rating systems.

Indoor Environmental Quality
Meeting the rigorous and comprehensive standards for low emissions of VOC's, our GREENGUARD Gold Certified ceilings contribute to the overall indoor air quality and general health of a building space.

Product Declarations
From raw material extradition through final disposal or reuse, we can provide life-cycle assessments on many of our products environment and health impacts.

EPD - Aluminum

EPD - Steel

HPD - Beams and Baffles



Sustainability Docs
