High Profile Series™ - Vertically Curved Baffles

Product Overview

Technical Specs

(More Info)

Warranty

(More Info)

CUTTING-EDGE DESIGN CREATES CEILINGS WITH FLOW.

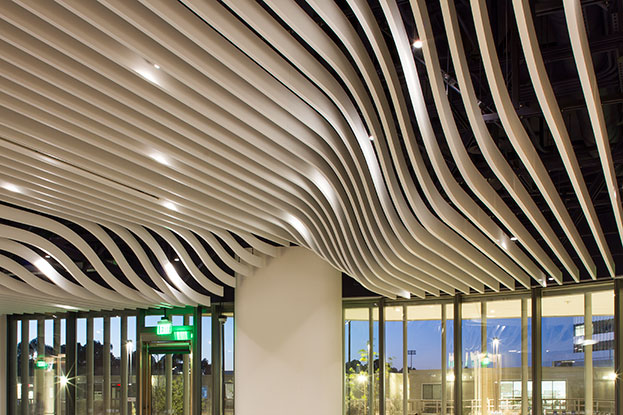

Creating waves across the ceiling plane, the High Profile Series™ Vertically Curved Baffle Ceiling System features versatile, customizable designs. Modern lines and curves make this ceiling ideal for various indoor commercial applications.

Our Unistrut® support system and custom fabrication capabilities let ceiling designs feature intriguing combinations of curve arcs and radii, as well as baffle heights and profiles.

Product Details

Beam Sizes:

  • Beam Profile
    • 1-1/2" x 6-3/8"

Note: Client specific shapes and finishes available

Key Features

  • Extruded aluminum profiles with exacting fit and finish
  • Seamless baffles up to 20 feet in length
  • Minimum radius 48"
  • Arc lengths 4 feet to 20 feet
  • Unistrut® support system
  • Client-specific suspension systems
  • Patented locking mechanism
  • Recycled content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 2.0 - 4.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Minimum of 50%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

Beam Sizes:

  • Beam Profile
    • 1-1/2" x 6-3/8"

Note: Client specific shapes and finishes available

Key Features

  • Extruded aluminum profiles with exacting fit and finish
  • Seamless baffles up to 20 feet in length
  • Minimum radius 48"
  • Arc lengths 4 feet to 20 feet
  • Unistrut® support system
  • Client-specific suspension systems
  • Patented locking mechanism
  • Recycled content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1 year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 2.0 - 4.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Minimum of 50%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

CAD & PDF

Click on the + sign to view and download details and drawings for the product(s) listed below.

High Profile Series - Vertically Curved

Name ID PDF DWG
High Profile Series Vertically Curved - Consolidated HPS-VCURVE-A1.0-A1.4 PDF DWG

DOCUMENT LIBRARY

Document Library

Name Download
High Profile Series - Brochure PDF
High Profile Series - Vertical - Data Sheet PDF
High Profile Series - Vertical - Submittal Sheet PDF
Limited Warranty PDF
Terms & Conditions PDF
High Profile Series - Vertical - Submittal Sheet - Canada PDF
High Profile Series - Vertical - Data Sheet - Canada PDF
High Profile Series - Vertical - Data Sheet - Canada (French) PDF
High Profile Series - Vertical - Submittal Sheet - Canada (French) PDF

Product Declarations

Name Download
EPD - Aluminum PDF
EPD - Steel PDF
HPD - Beams and Baffles PDF
GREENGUARD Gold Certificate PDF

Sustainability Information

Overview
CertainTeed designs, engineers and manufactures ceiling systems that optimize interior environmental quality, material resources and energy usage by incorporating sustainable materials and employing sustainable practices in our manufacturing processes.  Solutions from CertainTeed may contribute to LEED BD+C and ID+C certification for schools, retail, hospitality, healthcare and commercial interiors.

Ecomedes
Our Ecomedes Sustainable Product Platform allows you to quickly access the product information and certifications you need, calculate contributions to LEED and other green building rating systems and create and save a group of products using the project feature. The information is free to access and always up to date. You can sign up for an account using your name and an email and start specifying!

Visit ECOMEDES
Ecomedes allows the AEC Community, Designers and Owners to find, compare and optimize the selection of sustainable building products for any project based on environmental characteristics such as certifications, ecolabels, and contributions to green building rating systems.

Indoor Environmental Quality
Meeting the rigorous and comprehensive standards for low emissions of VOC's, our GREENGUARD Gold Certified ceilings contribute to the overall indoor air quality and general health of a building space.

Product Declarations
From raw material extradition through final disposal or reuse, we can provide life-cycle assessments on many of our products environment and health impacts.

EPD - Aluminum

EPD - Steel

HPD - Beams and Baffles
