UNINTERRUPTED LINES. UNBELIEVABLE ACOUSTICS.

Ceiling screens that hide subsystems and block noise. NRCs up to 1.05.
​

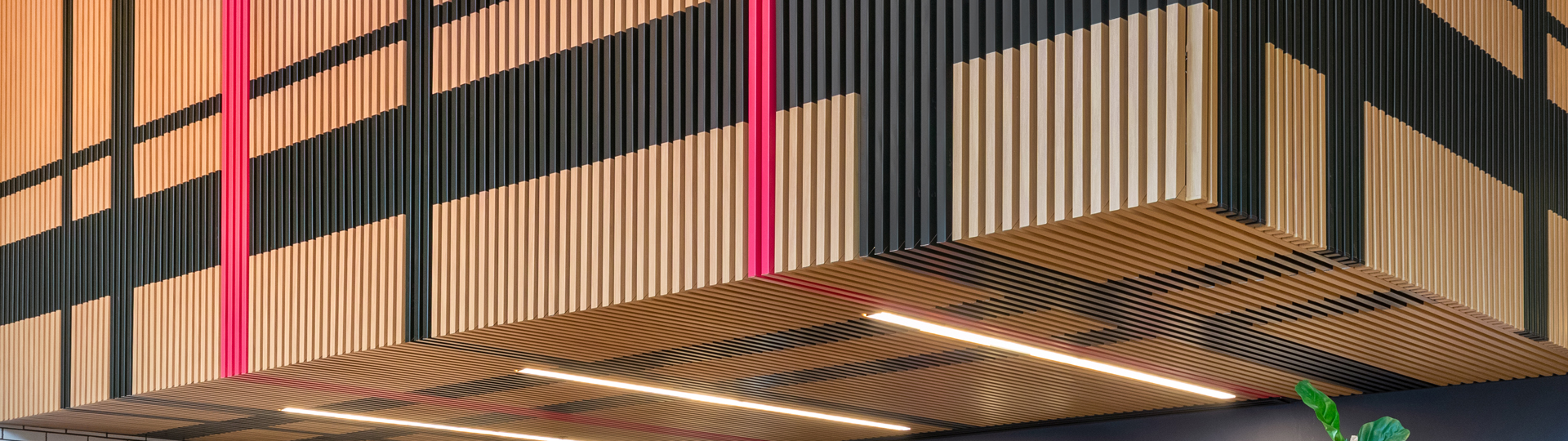

Continuous linear ceiling with high NRC.

Product Details

Panel sizes:

Panel module width: 2"

Panel lengths: 3' to 16'

Panel depths (nominal):

  • 1-1/2"

Note: Continuous Linear Grille utilizes Deep Box 2 panels



Key Features

  • High NRC
  • Continuous metal ceiling
  • Acclimation not required for metal grille prior to install
  • Square-edge design
  • Curved carrier application available
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Easy plenum access, typically using access doors
  • Interior and exterior applications
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1-year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 0.5 - 1.0 lbs/sq. ft.
  • Wind load: Per code (for exterior applications)
  • Recycled content: Up to 92%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

Panel sizes:

Panel module width: 2"

Panel lengths: 3' to 16'

Panel depths (nominal):

  • 1-1/2"

Note: Continuous Linear Grille utilizes Deep Box 2 panels



Key Features

  • High NRC
  • Continuous metal ceiling
  • Acclimation not required for metal grille prior to install
  • Square-edge design
  • Curved carrier application available
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Easy plenum access, typically using access doors
  • Interior and exterior applications
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1-year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 0.5 - 1.0 lbs/sq. ft.
  • Wind load: Per code (for exterior applications)
  • Recycled content: Up to 92%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

CAD & PDF

Click on the + sign to view and download details and drawings for the product(s) listed below.

Continuous Linear Grille (utilizing Deep Box 2 panels) - System Overview - Interior

Name ID PDF DWG
Continuous Linear Grille Consolidated Interior CONT-LIN-GR-A1.0-A1.12 PDF DWG

MEP

Lighting Specifications - LED Fixtures

Name Download
Box 4 & Deep Box 4 LED - Lighting Specifications PDF
Box 4 & Deep Box 4 LED - Lighting Specifications with Drop-Down Lens PDF
Box 6 & Deep Box 6 LED - Lighting Specifications PDF
Light Levels LED - Lighting Specifications PDF

Lighting Specifications - Fluorescent Fixtures

Name Download
Box 4 & Deep Box 4 Fluorescent - Lighting Specifications PDF
Box 4 & Deep Box 4 Fluorescent - Lighting Specifications with Drop-Down Lens PDF
Box 6 & Deep Box 6 Fluorescent - Lighting Specifications PDF

ACOUSTICS

Acoustical Tests performed in accordance with ASTM C423 and ASTM E795, in a type E400 mounting. Test reports available upon request.

PANEL DESCRIPTION ACOUSTICAL INFILL NRC SAA
Perforation #160 (23% Open Area), open reveal 2" polywrapped acoustical pad 1.05 1.06
Perforation #160 (23% Open Area), with Box Flat Closure 2" polywrapped acoustical pad 1.00 0.99
Perforation #160 (23% Open Area), with Box Flat Closure Nonwoven Acoustic & 1" polywrapped acoustical pad 1.00 0.97
Perforation #160 (23% Open Area), with Box Flat Closure 1" polywrapped acoustical pad 0.95 0.95
Perforation #160 (23% Open Area), open reveal 1" polywrapped acoustical pad 0.95 0.97
Non-perforated, open reveal 2" polywrapped acoustical pad 0.90 0.91
Perforation #160 (23% Open Area), with Box Flat Closure Nonwoven Acoustic 0.80 0.82
Non-perforated, open reveal 1" polywrapped acoustical pad 0.65 0.71
Perforation #160 (23% Open Area), open reveal Nonwoven Acoustic 0.50 0.50

DOCUMENT LIBRARY

Document Library

Name Download
Continuous Linear Grille - Data Sheet PDF
Continuous Linear Grille - Submittal Sheet PDF
Hub Lexington - Case Study PDF
Technical Specifications DOCX
Terms & Conditions PDF
Limited Warranty PDF
Cleaning Instructions PDF
Delivery, Storage and Handling N/A
Continuous Linear Grille - Submittal Sheet - Canada PDF
Continuous Linear Grille - Data Sheet - Canada PDF
Continuous Linear Grille - Data Sheet - Canada (French) PDF

Product Declarations

Name Download
EPD - Steel PDF
EPD - Aluminum PDF
HPD - CertainTeed Linear PDF
GREENGUARD Gold Certificate PDF
