Create a continuous linear visual: this versatile line of linear planks offers a multitude of finish options and easy installation methods.

Plank Sizes

Solid Wood

  • Nominal widths up to 6” (5-1/4” with ¾” reveal)
  • Lengths up to 120”

Key Features

  • Complement design elements, installation requirements, and acoustical performance with a variety of standard and custom configurations
  • Options available for use in exterior soffit and overhang applications
  • Achieve up to 0.75 Noise Reduction Coefficient
  • Manufactured with sustainable wood materials
  • Composed of low-VOC emitting materials and components



Physical Data

Material

  • Fire-retardant composite wood or solid wood planks

Weight

  • 1.5 – 3.0 lbs./sq. ft. (typical system weight)
  • Varies by configuration and material

Fire Class

Veneers

  • ASTM E84 (Class A) and CAN/ULC-S102
    • Flame spread: 25 or less
    • Smoke developed: 50 or less

Solid Wood

  • ASTM E84 (Class C) and CAN/ULC-S102
    • Flame spread: 200 or less
    • Smoke developed: 450 or less

Class A fire-retardant coatings and treatments are available for solid wood components.

Plank Sizes

Solid Wood

  • Nominal widths up to 6” (5-1/4” with ¾” reveal)
  • Lengths up to 120”

Key Features

  • Complement design elements, installation requirements, and acoustical performance with a variety of standard and custom configurations
  • Options available for use in exterior soffit and overhang applications
  • Achieve up to 0.75 Noise Reduction Coefficient
  • Manufactured with sustainable wood materials
  • Composed of low-VOC emitting materials and components



Physical Data

Material

  • Fire-retardant composite wood or solid wood planks

Weight

  • 1.5 – 3.0 lbs./sq. ft. (typical system weight)
  • Varies by configuration and material

Fire Class

Veneers

  • ASTM E84 (Class A) and CAN/ULC-S102
    • Flame spread: 25 or less
    • Smoke developed: 50 or less

Solid Wood

  • ASTM E84 (Class C) and CAN/ULC-S102
    • Flame spread: 200 or less
    • Smoke developed: 450 or less

Class A fire-retardant coatings and treatments are available for solid wood components.

REVIT, CAD & PDF

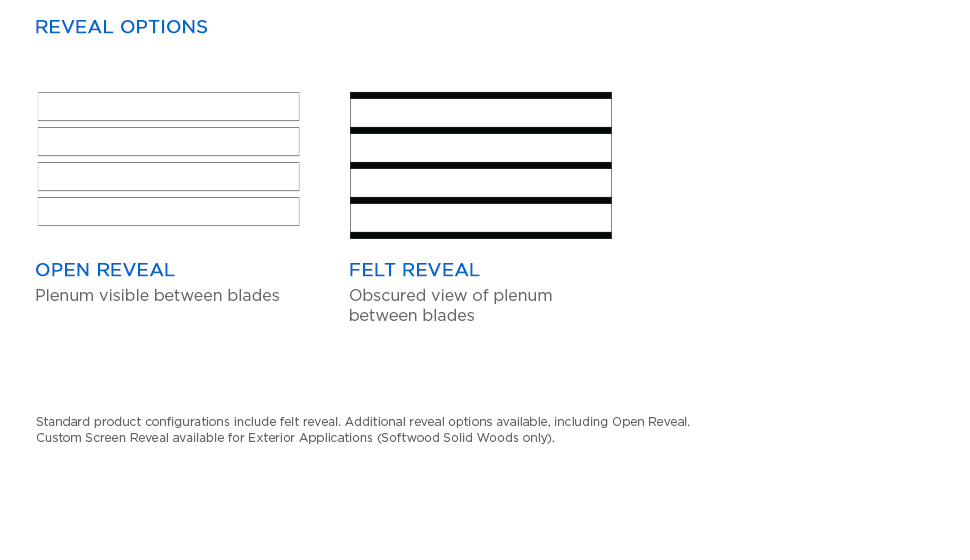

LINEAR PLANKS - OPEN REVEAL - GRID CLIP

Name PDF DWG
Open Reveal - Grid Clip (3110L4) PDF DWG

LINEAR PLANKS - OPEN REVEAL - TWIST CLIP

Name PDF DWG
Open Reveal - Twist Clip (3115L6) PDF DWG

LINEAR PLANKS - CLOSED REVEAL - TONGUE & GROOVE

Name PDF DWG
Closed Reveal - Tongue & Groove (3305U1) PDF DWG

Acoustics

*With Theatre® Black f 1" acoustic panel infill

Pattern NRC*
C7 0.80
C8 0.80
C9 0.65
L4 0.75
L6 0.65
