Product Overview

Technical Specs

(More Info)

Enhance your open space ceiling design with this line of versatile wood canopies. Flat, curved, rectangular, and rhombus formations available with flexible hanger wire installation to allow for adjustable heights, layers, or angles.

Product Details

Panel Sizes & Shapes

  • 3’ x 6’ and 4’ x 8’

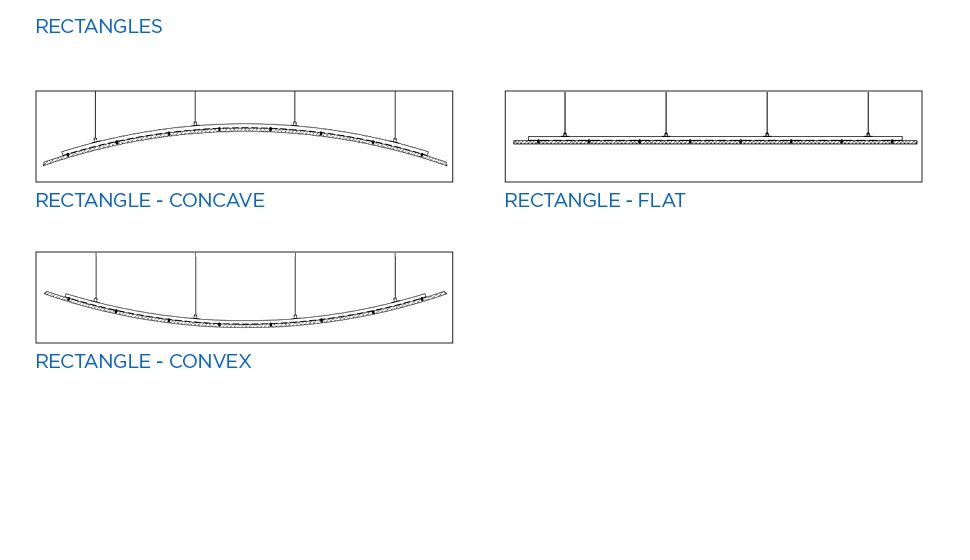

  • Rectangle and Rhombus shapes available: concave, convex, or flat
  • ¾” thickness

Key Features

  • Maintain exposed structure design intent
  • 14 standard veneers available
  • Flexible installation allows adjustable heights and angles
  • Additional special order finishes, sizes, and configurations available; contact your local sales representative for more information

 Physical Data

  • Material: Fire-retardant Particle Board or fire-retardant MDF; galvanized steel strut
  • Surface finish: Clear topcoat with 20% sheen
  • Warranty: 1-year limited warranty
  • Fire rating: Class A per ASTM E84/ULC S102
    • Flame spread: 25 or less
    • Smoke developed: 50 or less
  • Weight 2.8-3.1 lbs./sq. ft.

Panel Sizes & Shapes

  • 3’ x 6’ and 4’ x 8’
  • Rectangle and Rhombus shapes available: concave, convex, or flat
  • ¾” thickness

Key Features

  • Maintain exposed structure design intent
  • 14 standard veneers available
  • Flexible installation allows adjustable heights and angles
  • Additional special order finishes, sizes, and configurations available; contact your local sales representative for more information

 Physical Data

  • Material: Fire-retardant Particle Board or fire-retardant MDF; galvanized steel strut
  • Surface finish: Clear topcoat with 20% sheen
  • Warranty: 1-year limited warranty
  • Fire rating: Class A per ASTM E84/ULC S102
    • Flame spread: 25 or less
    • Smoke developed: 50 or less
  • Weight 2.8-3.1 lbs./sq. ft.

REVIT, CAD & PDF

CANOPIES - CONCAVE

Name PDF DWG
Concave Canopy (7020ER) PDF DWG

CANOPIES - FLAT

Name PDF DWG
Flat Canopy (7030FR) PDF DWG

Document Library

Document Library

Name Download
Data Page – Wood Canopies PDF
Data Page – Wood Canopies - French - Canada PDF
Cross Reference Guide PDF
Wood Ceilings & Walls Brochure PDF
Warranty PDF
Natural Wood Veneer - Sell Sheet PDF
Special Order - Veneers & Finishes PDF
3-Part Spec - Wood Canopies DOCX
3-Part Spec - Wood Canopies - French DOCX
VOC Certificate of Compliance (Veneer) PDF
Data Page – Wood Canopies - Canada PDF
Understanding Veneers and Solid Woods Brochure PDF
