DESIGN WITH BIAS.

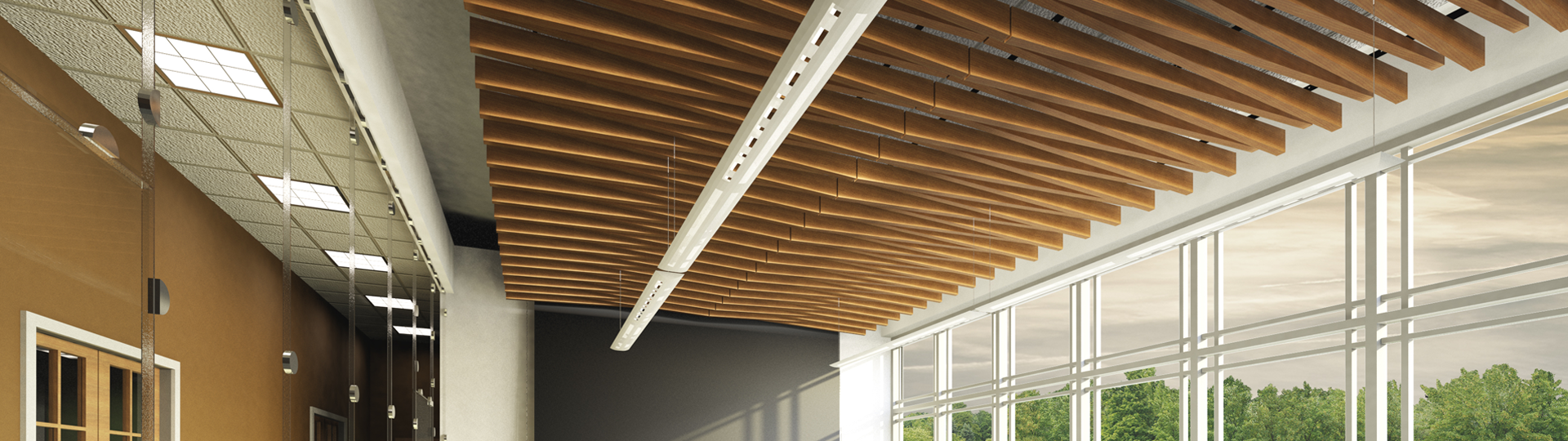

Tavola™ Canted metal ceilings offer modern design aesthetic and elevated acoustics. Individual sloping beam members establish a sense of motion in interior ceilings, either following existing conditions or creating new effects.

The key feature of this system is the standard heavy-duty 15/16" T-grid suspension. This allows for the benefit of easy installation and compatibility.

Product Details

Create movement with individual sloping beam dimensions

Three beam types, three beam depths:

2" – 6", 2" – 4", 4" – 6"

Key Features

  • Standard heavy-duty 15/16" T-grid suspension
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1-year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 0.5 - 2.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Up to 85%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

Create movement with individual sloping beam dimensions

Three beam types, three beam depths:

2" – 6", 2" – 4", 4" – 6"

Key Features

  • Standard heavy-duty 15/16" T-grid suspension
  • Waste reduction with factory fabricated dimensional material
  • Downweight: reduce dead load with lightweight aluminum
  • Compatible with industry standard lighting, HVAC, speaker, fire safety and security services
  • High recycled aluminum content
  • No VOCs: No added urea-formaldehyde
  • GREENGUARD Gold Certified
  • EPD and HPD available

Physical Data

  • Substrate: Aluminum
  • Warranty: 1-year Limited Warranty
  • Seismic rating: Zones A, B, C, D, E, F
  • Fire rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Weight: Varies 0.5 - 2.0 lbs/sq. ft.
  • Wind load: N/A
  • Recycled content: Up to 85%
  • Light reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Cotton White: LR = 0.81

CAD & PDF

Click on the + sign to view and download details and drawings for the product(s) listed below.

Tavola Canted

Name ID PDF DWG
Tavola Canted Consolidated TAVOCANT-A1.0-A1.5 PDF DWG

DOCUMENT LIBRARY

Document Library

Name Download
Tavola Canted - Technical Specifications DOCX
Tavola Canted - Data Sheet PDF
Tavola Canted - Submittal Sheet PDF
Limited Warranty PDF
Terms & Conditions PDF
Tavola Canted - Data Sheet - Canada PDF
Tavola Canted - Submittal Sheet - Canada PDF
Tavola Canted - Data Sheet - Canada (French) PDF
Tavola Canted - Submittal Sheet - Canada (French) PDF

Product Declarations

Name Download
EPD - Aluminum PDF
EPD - Steel PDF
HPD - Beams and Baffles PDF
GREENGUARD Gold Certificate PDF

Sustainability Information

Overview
CertainTeed designs, engineers and manufactures ceiling systems that optimize interior environmental quality, material resources and energy usage by incorporating sustainable materials and employing sustainable practices in our manufacturing processes.  Solutions from CertainTeed may contribute to LEED BD+C and ID+C certification for schools, retail, hospitality, healthcare and commercial interiors.

Ecomedes
Our Ecomedes Sustainable Product Platform allows you to quickly access the product information and certifications you need, calculate contributions to LEED and other green building rating systems and create and save a group of products using the project feature. The information is free to access and always up to date. You can sign up for an account using your name and an email and start specifying!

Visit ECOMEDES
Ecomedes allows the AEC Community, Designers and Owners to find, compare and optimize the selection of sustainable building products for any project based on environmental characteristics such as certifications, ecolabels, and contributions to green building rating systems.

Indoor Environmental Quality
Meeting the rigorous and comprehensive standards for low emissions of VOC's, our GREENGUARD Gold Certified ceilings contribute to the overall indoor air quality and general health of a building space.

Product Declarations
From raw material extradition through final disposal or reuse, we can provide life-cycle assessments on many of our products environment and health impacts.

EPD - Aluminum

EPD - Steel

HPD - Beams and Baffles

Sustainability Docs
