COOL AND CONTEMPORARY. INNOVATIVE AND CREATIVE. FUN AND FUNCTIONAL.

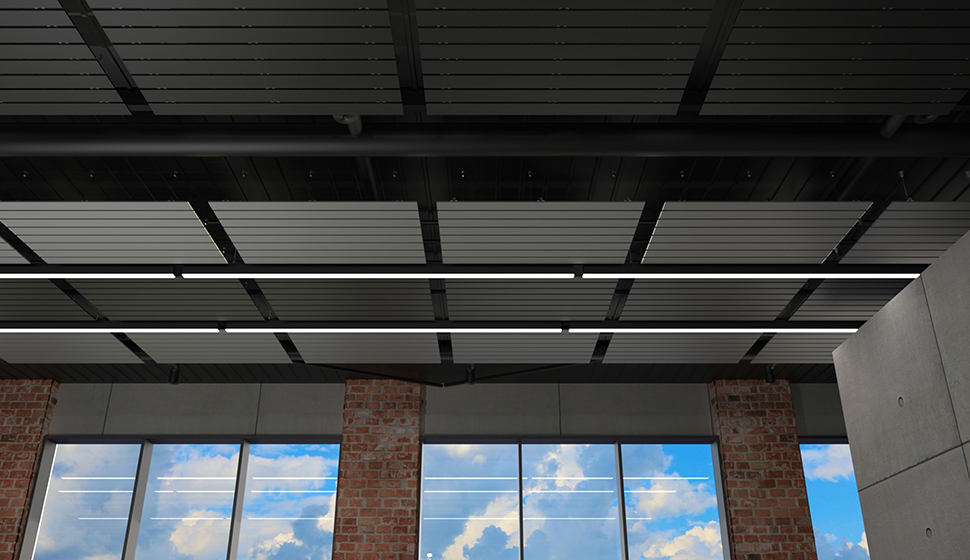

Linear Nuvola™ brings the innovative and artistic cloud panels option to our metal ceilings and walls Box & Deep Box Series portfolio. Transform any interior ceiling into a breathtaking, sound-mitigating work of functional art.

Available with a pre-established bill of materials and standard pricing, Linear Nuvola ships quickly, arrives on-site ready for placement, and installs easily. There are plenty of customizable options available, too.

Product Details

PANEL SIZES

Panel module widths: 2", 4", 6" and 8"

Panel lengths: 2' to 8'

Panel depths:

• 5/8" (Box 2, 4, 6 & 8)

• 1" (Deep Box 4, 6 & 8)

• 1-1/2" (Deep Box 2)



Standard Round Nuvola: 4', 6', 8'

Standard Square Nuvola: 2'x2', 4'x4', 6'x6', 8'x8'

Standard Rectangular Nuvola: 2'W x 4'L, 2'W x 6'L, 2'W x 8'L, 4'W x 2'L, 4'W x 6'L, 4'W x 8'L, 6'W x 2'L, 6'W x 4'L, 6'W x 8'L, 8'W x 2'L, 8'W x 4'L, 8'W x 6'L

KEY FEATURES

• Round, Square, and Rectangular cloud design options

• Option to mix-and-match cloud shapes in same installation and create levels

• Complete assemblies in box

• Shorter lead time of 3-4 weeks for cotton white & natural (standard paint colors)

• Available in non-perforated or perforated

• Interior application

• Easy plenum access

• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services

• High recycled aluminum content

• No VOCs: No added formaldehyde

• GREENGUARD Gold Certified

PHYSICAL DATA

  • Substrate: Aluminum
  • Warranty: 1-year Limited Warranty
  • Weight: Varies 0.5 – 1.0 lbs./sq.ft.
  • Fire Rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Seismic Rating: Zones A,B,C,D,E,F
  • Wind Load: N/A
  • Recycled Content: Up to 92%
  • Light Reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Varies with finish
    •  Cotton White: LR = 0.81
    •  Aviation White #1011C: LR = 0.93


PANEL SIZES

Panel module widths: 2", 4", 6" and 8"

Panel lengths: 2' to 8'

Panel depths:

• 5/8" (Box 2, 4, 6 & 8)

• 1" (Deep Box 4, 6 & 8)

• 1-1/2" (Deep Box 2)



Standard Round Nuvola: 4', 6', 8'

Standard Square Nuvola: 2'x2', 4'x4', 6'x6', 8'x8'

Standard Rectangular Nuvola: 2'W x 4'L, 2'W x 6'L, 2'W x 8'L, 4'W x 2'L, 4'W x 6'L, 4'W x 8'L, 6'W x 2'L, 6'W x 4'L, 6'W x 8'L, 8'W x 2'L, 8'W x 4'L, 8'W x 6'L

KEY FEATURES

• Round, Square, and Rectangular cloud design options

• Option to mix-and-match cloud shapes in same installation and create levels

• Complete assemblies in box

• Shorter lead time of 3-4 weeks for cotton white & natural (standard paint colors)

• Available in non-perforated or perforated

• Interior application

• Easy plenum access

• Compatible with industry standard lighting, HVAC, speaker, fire safety and security services

• High recycled aluminum content

• No VOCs: No added formaldehyde

• GREENGUARD Gold Certified

PHYSICAL DATA

  • Substrate: Aluminum
  • Warranty: 1-year Limited Warranty
  • Weight: Varies 0.5 – 1.0 lbs./sq.ft.
  • Fire Rating: Class A Fire Rated per ASTM E84
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Film on metal: Flame spread: ≤ 25, Smoke ≤ 50
    • Wood veneer on metal: Flame spread: ≤ 25, Smoke ≤ 55 (for interior applications)
  • Fire Rating: Class A Fire Rated per CAN/ULC-S102
    • Painted or anodized metal: Flame spread: ≤ 25, Smoke ≤ 50
  • Seismic Rating: Zones A,B,C,D,E,F
  • Wind Load: N/A
  • Recycled Content: Up to 92%
  • Light Reflectance (LR) Coefficient per ASTM E1264 & ASTM E1477:
    • Varies with finish
    •  Cotton White: LR = 0.81
    •  Aviation White #1011C: LR = 0.93


CAD & PDF

Click on the + sign to view and download details and drawings for the product(s) listed below.

Linear Nuvola

Name ID PDF DWG
Linear Nuvola BOX 2 Linear Nuvola - BOX-2 - LN1.0-LN1.8 PDF N/A
Linear Nuvola BOX 4 Linear Nuvola - BOX-4 - LN1.0-LN1.8 PDF N/A
Linear Nuvola BOX 6 Linear Nuvola - BOX-6 - LN1.0-LN1.8 PDF N/A
Linear Nuvola BOX 8 Linear Nuvola - BOX-8 - LN1.0-LN1.8 PDF N/A

DOCUMENT LIBRARY

Document Library

Name Download
Linear Nuvola - Box & Deep Box Series - Data Sheet
Linear Nuvola Box 2 - Submittal Sheet
Linear Nuvola Box 4 - Submittal Sheet
Linear Nuvola Box 6 - Submittal Sheet
Linear Nuvola Box 8 - Submittal Sheet
Linear Nuvola Deep Box 2 - Submittal Sheet
Linear Nuvola Deep Box 4 - Submittal Sheet
Linear Nuvola Deep Box 6 - Submittal Sheet
Linear Nuvola Deep Box 8 - Submittal Sheet
Linear Nuvola Technical Specifications
Limited Warranty
GREENGUARD Gold Certificate

Sustainability Information
